Back to Barricades
False ? Anchor® Mast® Type III Barricade :

Anchor® Mast® Type III Barricade

  • Contact for pricing

Resources

  • FHWA Acceptance Letter WZ-173
  • FHWA Acceptance Letter WZ-244
  • FHWA ACCEPTANCE LETTER WZ-389
  • LaneGard 3 and Anchor Mast Type III Barricade Product Guide
  • Barricade, Channelizer, & Delineator Product Guide March, 2024
  • PSS Full Product Guide, April, 2025
  • Anchor Mast Barricade Product Flyer

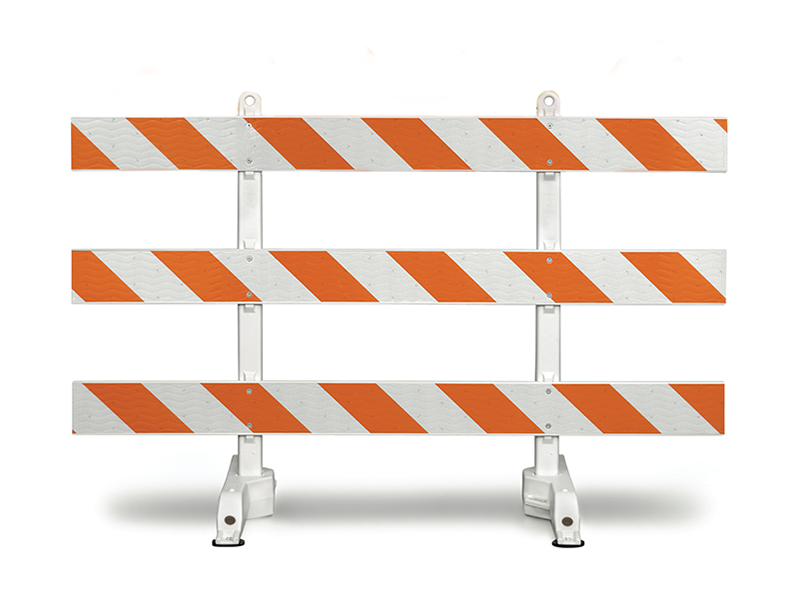

The Anchor® Mast® Type III Barricade System has now been tested to the rigors of MASH requirements and the Federal Highway Administration has issued a letter of eligibility, which may be viewed in the "Resources" section of this page.

Anchor® Mast® Type III Barricade System consists of three components: Anchor Base, Mast Upright, and PSS Wave® Centerboard.

BARRICADE CONFIGURATION OPTIONS
Boards 4' Wave 6' Wave 8' Wave 10' extruded 12' extruded
Anchor Foot Length 4' 5' 4’ for Telespar  5’ for Telespar
Upright Type 5' Mast 5' Extruded 7' Extruded
Sheeting Type Engineer High Intensity Prismatic Diamond
Sheeting Direction 1 side Right 1 side Left 1 side Bi-directional 2 sides right/left 2 sides Bi-directional

Features and Benefits - Anchor Base

  • Anchor Base is manufactured from UV-stabilized high density polyethylene

  • NCHRP-350 certified and MUTCD compliant. FHWA Acceptance Letter 244 contains a list of all FHWA acceptance letters for Anchor Mast Type III Barricade.

Features and Benefits - Mast Upright:

  • For faster, easier assembly in an active work zone

  • Upright is 5' H, weighs 4.5 lbs

  • Molded-in Warning Light Mount for Types A and C warning lights

  • Mounting Holes for flags

  • Raised Centerboard Locators for faster attachment of centerboards.

  • Molded-through holes add strength and support for centerboards. Holes are recessed to protect installers and sheeting.

  • Mast Upright "press-fits" into Anchor Base. No tools or fasteners required.

  • See Mast Upright pictures in the gallery to view features

Anchor Base:

  • Mast Upright press-fits into Anchor Base.

  • Anchor Base accommodates other 4" x 4" uprights

  • Available in 2 lengths: Anchor 48" or Anchor 60"

  • Replaces sand bags: Anchor 48" holds 45 lbs of sand, Anchor 60" holds 60 lbs

  • Features Carrying Handle, Rubber Anti-skid Pad, Fill hole

  • See Anchor Base pictures in the gallery to view features

Features and Benefits - Anchor Base for Steel Uprights*:

  • Re-purpose existing steel upright inventory

  • Features press-fit installation of 1.75" metal or plastic uprights

  • Available in 48" or 60" lengths

  • Add PSS Light and Flag Mount to steel uprights for use of flags and warning lights

  • See Anchor Base for Steel Uprights pictures in the gallery to view features


To learn more about our Wave Centerboards, click here.

*PSS does not manufacture or market steel upright

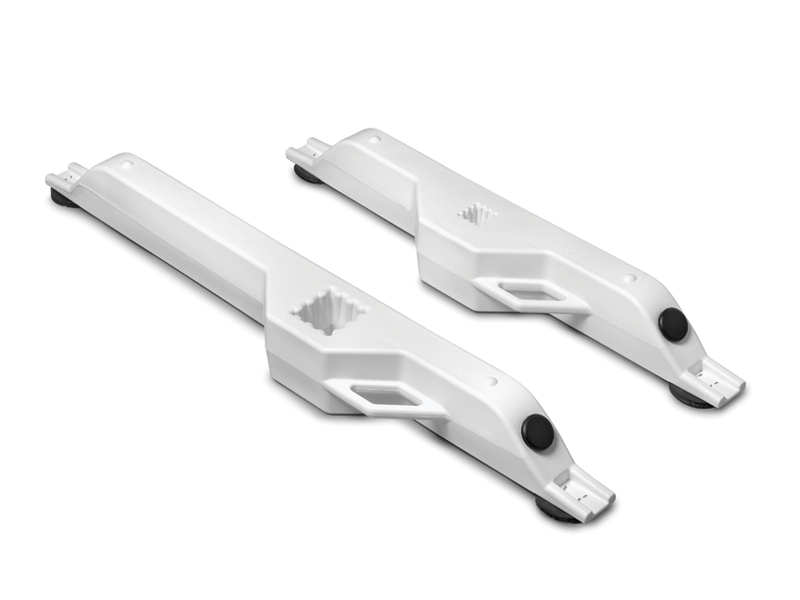

 True?Anchor Base Features:

Anchor Base Features

Anchor Base can replace sand bags!
 True?Anchor Base Features:

Anchor Base Features

Anchor Base can replace sand bags!
 True?Anchor Mast Type III Barricade System:

Anchor Mast Type III Barricade System

Consists of Mast Upright, Anchor Base, Wave Centerboards
 True?Anchor Type III Barricade with Steel Uprights:

Anchor Type III Barricade with Steel Uprights

Re-purpose existing steel upright inventory with Anchor Barricade
 True?Back of Light and Flag Mount (LFM):

Back of Light and Flag Mount (LFM)

LFM also fits inside extruded plastic uprights
 True?Cross-section View of Wave Centerboard:

Cross-section View of Wave Centerboard

Design strengthens centerboard; reduces sagging, warping; improves reboundability
 True?Wave Attached to Mast Upright:

Wave Attached to Mast Upright

Mast Upright features make assembly and installation faster, easier assembly
 True?PSS Wave Centerboard:

PSS Wave Centerboard

Wave Centerboards Available in 4', 6', 8' lengths
 True?Wave Centerboard Encapsulated End:

Wave Centerboard Encapsulated End

Closed ends prevent dirt and moisture from collecting, prevents bees and hornets from building nests
