Boardwalk Temporary Pedestrian Modular Ramp

Boardwalk Temporary Pedestrian Modular Ramp

Total Call For Pricing

Resources

  • RightPath ADA-Compliant Devices Product Guide, August, 2022
  • BoardWalk Assembly Instructions, 2022
  • PSS Full Product Guide, August, 2020

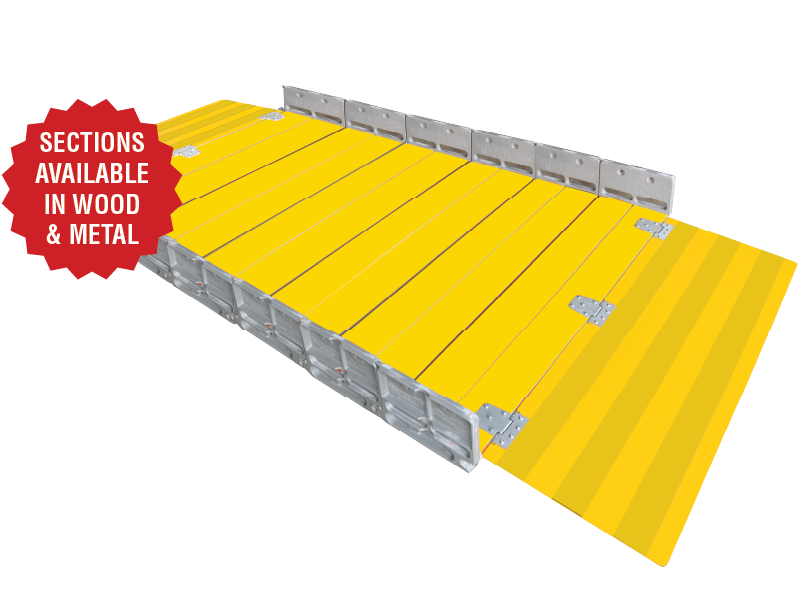

​BoardWalk Temporary Pedestrian Modular RAMP provides accessible, detectable, safer guidance when temporary pedestrian access routes cross perpendicularly over curbs. BoardWalk is ADA-Compliant.

BoardWalk RAMP is ideal for use when a permanent crosswalk is closed, and the temporary pedestrian pathway is re-routed to a mid-block, temporary crosswalk that crosses a curb.

Features and Benefits:

  • Modular sections are portable and connect for ramp length needed
  • No hardware required
  • Allows for any slope of 1" rise for 12" run (8%, or a 1:12 ratio)
  • Modular edge support castings provide guidance for pedestrians who use canes, walking devices, or wheelchairs
  • Boards and approach plates feature a slip-resistant surface
  • Approach plates are 48" W x 18" L and also feature a slip-resistant surface
  • RAMP rated at 800 lb. capacity for 48" maximum width

The number of modular ramp sections determines the slope of BoardWalk RAMP. The number of sections differs when using either BoardWalk RAMP or BoardWalk RAMP and Platform. Please see our ADA-Compliant Safety Devices Product Guide to determine proper number of ramp sections, or reach out to our Customer Service team for more information at (800) 662-6338.

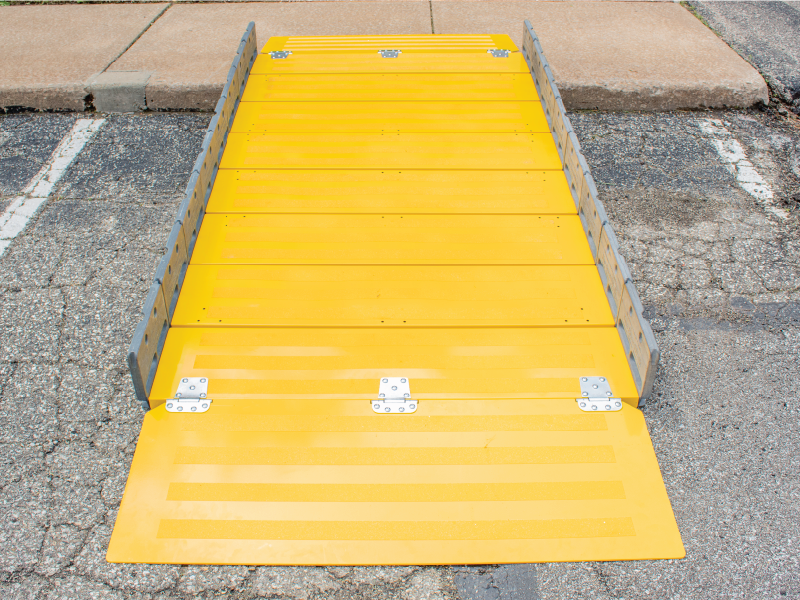

BoardWalk RAMP Installation

BoardWalk RAMP Installation

RAMP installed perpendicular to traffic to provide temporary crosswalk over curb.

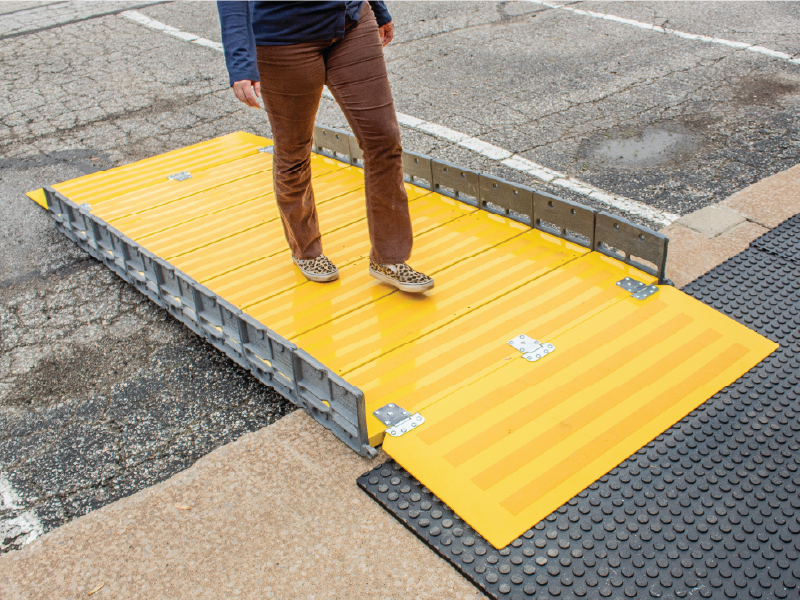

BoardWalk RAMP is wheelchair friendly

BoardWalk RAMP is wheelchair friendly

48" Wide BoardWalk is rated at 800 lbs., accommodating most wheelchairs. Suspended design allows for normal street drainage.

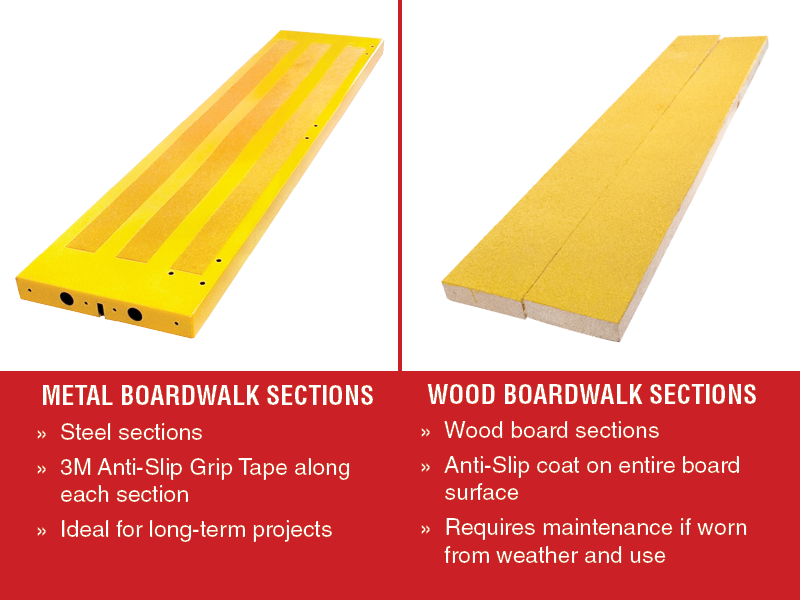

BoardWalk RAMP Modular Sections

BoardWalk RAMP Modular Sections

Modular Sections weigh 30 pounds and assemble in minutes.

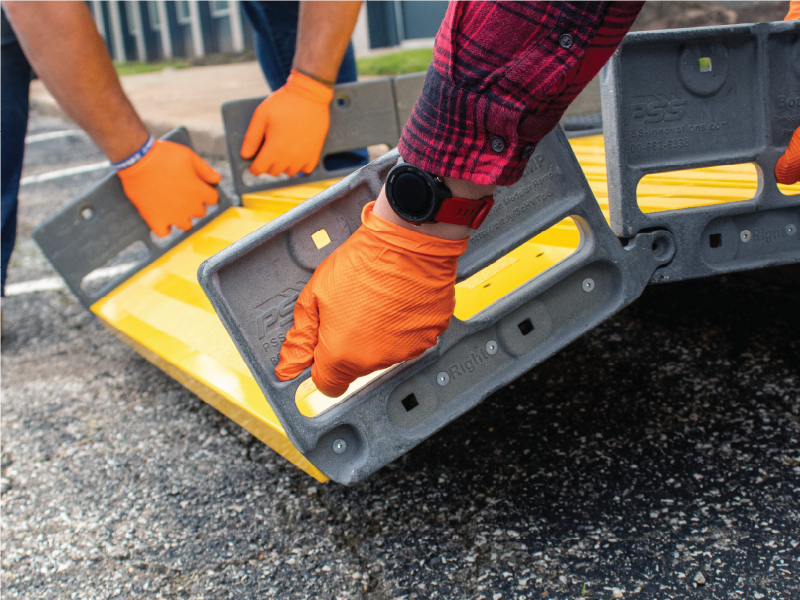

BoardWalk RAMP Modular Sections

BoardWalk RAMP Modular Sections

Assembling RAMP is a quick, two-person job.
Casting and Handrail Support

Casting and Handrail Support

Castings also accommodate handrails.
Modular Edge Support Castings

Modular Edge Support Castings

Durable cast iron Edge Support Castings are 12" W x 8" H, and are designed for 2" x 6" slip-resistant lumber.
BoardWalk RAMP and Kee Safety, Inc

BoardWalk RAMP and Kee Safety, Inc

Adjustable Elbow Connector by Kee Safety, Inc.
BoardWalk RAMP and Kee Safety, Inc

BoardWalk RAMP and Kee Safety, Inc

90-degree Elbow fitting by Kee Safety, Inc.
